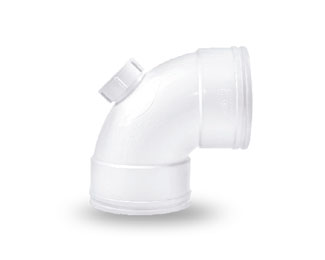

88° Bend (F/F) I/O

with Inspection Opening

88° Bend (F/F) I/O with Inspection Opening

Danh mục: Soil Waste & Vent Drainage System

Mô tả

PRODUCT CODE	NOM. SIZE (mm)	ANGLE	DIMENSIONS (mm)
PRODUCT CODE	NOM. SIZE (mm)	Ѳ	H1	L1	L2
B8832D	32	88	24	50	53
B8840D	40	88	27	62	62
B8850D	50	88	32	74	74
B8880D	80	88	45	109	112
B88100D	100	88	52	120	121
B88150D	150	88	77	200	203
