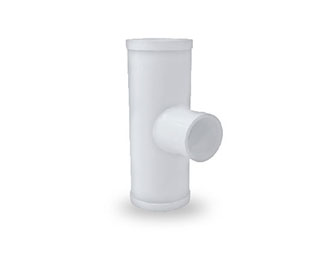

Reducing Tee

Reducing Tee

Danh mục: Pressure Piping System

Mô tả

PRODUCT CODE	NOM. SIZE (mm)	DIMENSIONS (mm)
PRODUCT CODE	NOM. SIZE (mm)	H1	H2	L1	L2
RT2015	20×15	21	19	64	39
RT2515	25×15	24	20	72	40
RT2520	25×20	24	56	86	42
RT3215	32×15	44	29.7	105	45
RT3220	32×20	44	35	96	45
RT3225	32×25	44	40	96	45
RT4015	40×15	55	30	163	54
RT4020	40×20	55	35	163	62
RT4025	40×25	55	40	163	67
RT4032	40×32	55	40.8	163	71
RT5015	50×15	63	30	192	63
RT5020	50×20	63	35	192	68
RT5025	50×25	63	40	192	73
RT5032	50×32	63	44	192	78
RT5040	50×40	63	55	192	88
RT8050	80×50	64	63	240	161
RT10050	100×50	85	63	189	100
RT10080	100×80	85	63	222	127
